Isolate clusters on VLANs with Netris

One deployment model for vCluster is through private nodes. It allows for stronger isolation between the virtual clusters, since the virtual cluster Pods don't share the same Nodes. However, the network of a virtual cluster is not isolated from other workloads by default.

This guide shows how to isolate a virtual cluster spanning mixed bare metal and VM private nodes that share the same underlying hardware with an exclusive network using VLAN and Netris.

Architecture

After preparing the host cluster, we will:

Configure the VLAN membership of the switch ports with Netris
Deploy the vCluster control plane on the VLAN with a load balancer
Create a VM as a private node in the virtual cluster
Provision a bare metal server as a private node in the virtual cluster

Like in traditional Kubernetes clusters, Nodes share the same L2 domain. Instead of control plane nodes, the vCluster control plane runs as (multihomed) Pods in the host cluster. This is transparent to the virtual cluster, however, the host cluster remains inaccessible.

This can be repeated for any number of clusters, and it's limited mainly by compute resources and VLAN ids or what the switch can handle. The VPCs of each virtual cluster may also be peered to access shared services across clusters.

Netris

Netris provides software for managing and automating the switch fabric in a datacenter.

We use the Netris controller to manage the architecture logically (switch port VLAN membership) while the Netris agent will implement it on the physical switches.

The architecture can be replicated without Netris. Then, the switches must be configured manually (VLANs, ports).

Prerequisites

We assume the following:

Hardware deployed
Netris controller & agent installed & configured
Bare metal Kubernetes "host cluster" set up (See below)

Tools used

Prepare host cluster

The switch ports the host cluster nodes are connected to must be managed by Netris. It is advisable to install Kubernetes after the network has been configured accordingly.

Configure switch fabric

The host cluster gets its own VLAN, which spans all shared servers. In contrast to the virtual cluster, the VLAN traffic for the host cluster is untagged, so no special considerations are necessary in the nodes' OS.

Create ServerClusterTemplate in Netris

This template is exclusively used for the host cluster.

[
    {
        "ipv4Gateway": "192.168.55.254/21",
        "ipv4DhcpEnabled": true,
        "postfix": "nodes",
        "serverNics": [
            "eth9",
            "eth10"
        ],
        "type": "l2vpn",
        "vlan": "untagged",
        "vlanID": "auto"
    }
]

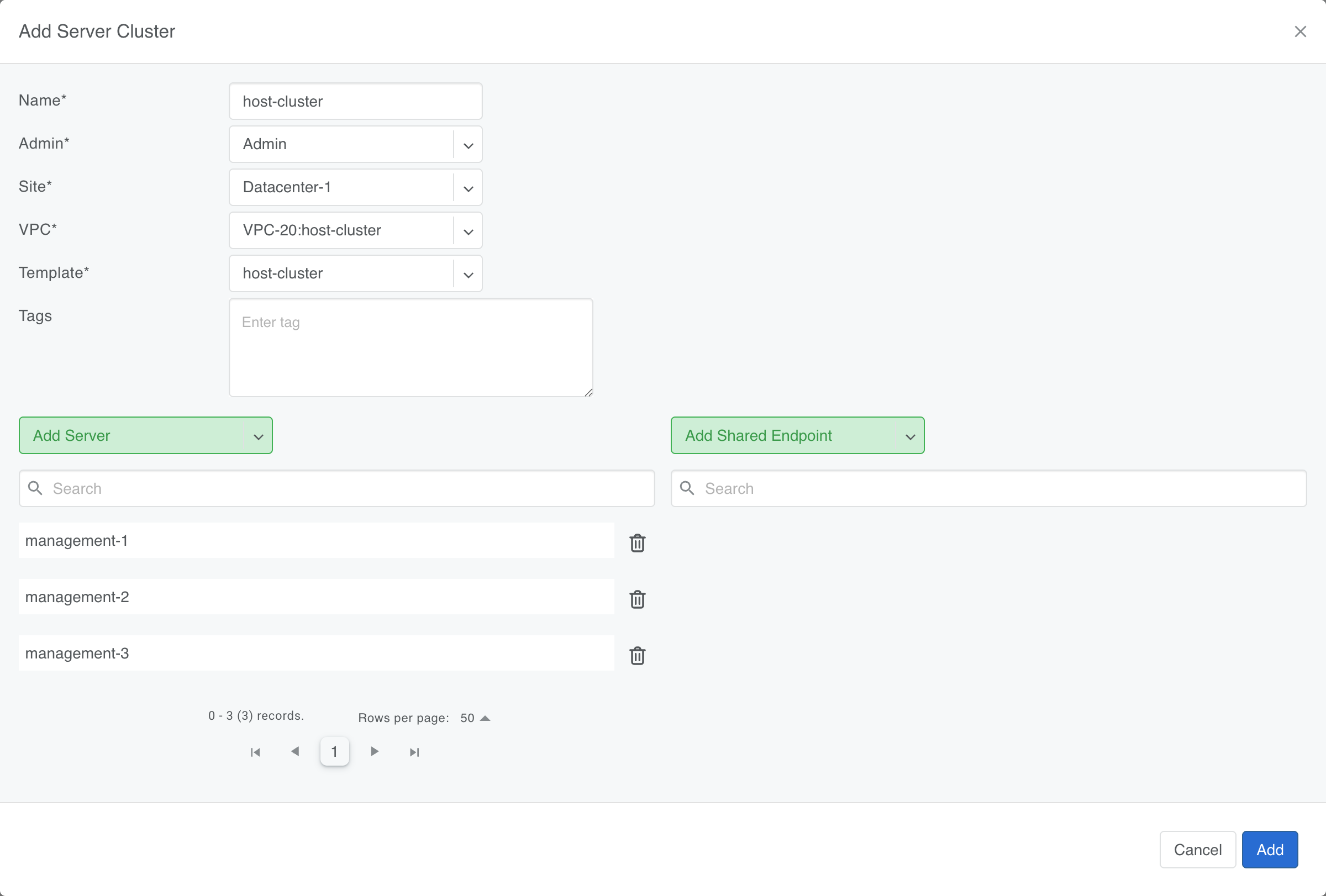

Create ServerCluster in Netris

Create a ServerCluster in Netris using the template and add the shared servers to it.

This configures the connected ports as access ports with the same VLAN.

Install Kubernetes

Most Kubernetes distributions should work without any modifications.

There must be a default StorageClass available.

Install compatible CNI plugin

Since the host cluster Nodes handle VLAN traffic, some CNI plugin configurations are not compatible.

We have tested the following plugins:

Flannel
Calico in VXLAN mode (eBPF mode seems to drop VLAN tagged frames)
Cilium
- Must set cni.exclusive: false
- Must set bpf.vlanBypass: '{0}'

Install tooling

There are a few tools we need to install in the host cluster. They manage interfaces on the host cluster nodes that allow adding Pods and VMs to the virtual cluster VLAN.

Multus

See install instructions in Multus CNI.

Multus adds additional interfaces to the vCluster control plane Pods and KubeVirt VMs to attach them to the virtual cluster VLAN.

Bridge operator

See install instructions in Bridge operator.

The Bridge operator creates an unfiltered bridge on the host for the virtual cluster VLAN. It's connected to a VLAN interface that tags any egress traffic to put it on the virtual cluster VLAN.

Multiple Pods and VMs can be connected to the same bridge on the same host.

Whereabouts IPAM plugin

See install instructions in Whereabouts IPAM plugin.

The Whereabouts IPAM plugin assigns well-known IPs to the vCluster control plane Pods. It tracks the allocations of the pool cluster-wide, to avoid IP conflicts across different nodes.

KubeVirt

See install instructions in KubeVirt.

KubeVirt works together with Multus and manages the VMs in the host cluster.

The example below also uses the containerized data importer to create a large enough disk to install and run Kubernetes on top of Ubuntu 24.04.

Start vCluster platform

info

Running vCluster platform and registering grants you 2 weeks of full access to all platform features, including private nodes which is required for this setup.

Start vCluster Platform
vcluster platform start

Provide your email address and complete the onboarding process in the browser.

Deploy vCluster

The following steps can be repeated for additional vCluster deployments.

Configure switch fabric for the virtual cluster

Create ServerClusterTemplate

This template can be reused for multiple clusters.

[
    {
        "ipv4Gateway": {
            "assignType": "auto",
            "allocation": "192.168.64.0/18",
            "childSubnetPrefixLength": 22,
            "hostnum": 1022
        },
        "ipv4DhcpEnabled": true,
        "postfix": "nodes",
        "serverNics": [
            "eth9",
            "eth10"
        ],
        "type": "l2vpn",
        "vlan": "untagged",
        "vlanID": "auto"
    }
]

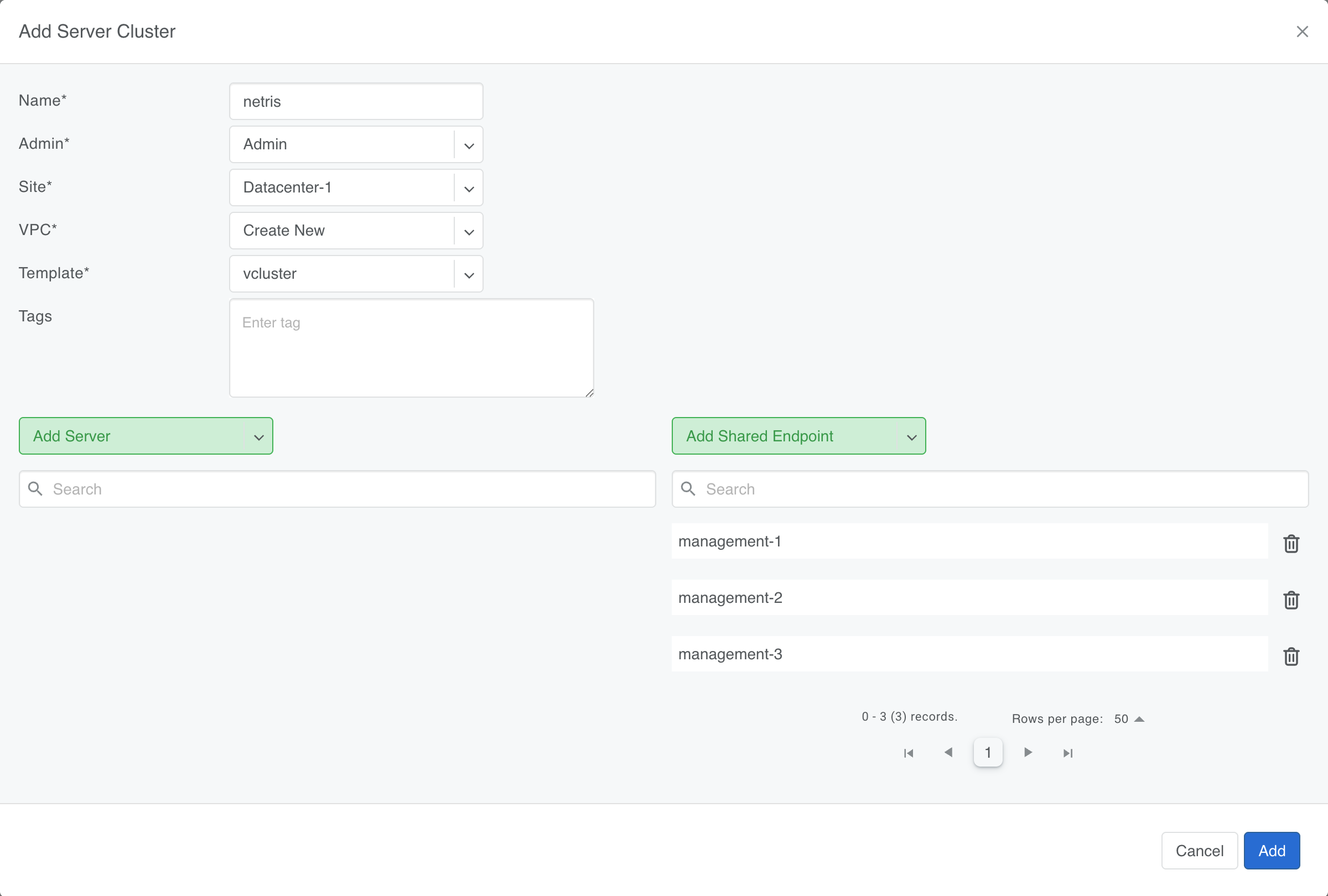

Create ServerCluster

Create a ServerCluster in Netris using the template and add the shared servers to it as shared endpoints.

This configures the ports on the shared servers as trunk ports (additionally) carrying tagged VLAN traffic.

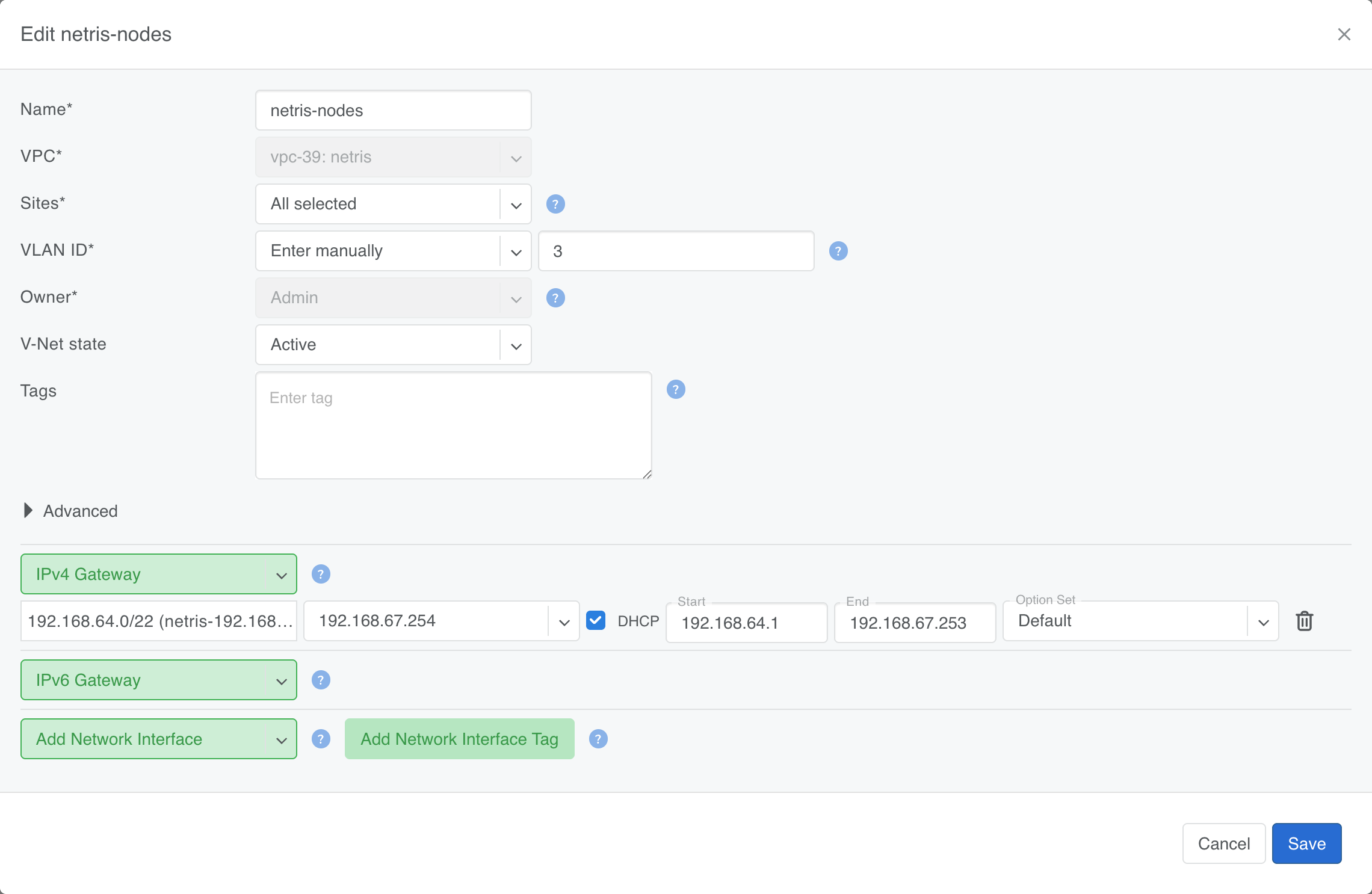

Look up the Vnet's VLAN id

Netris creates a vnet and assigns it a VLAN id. We need the VLAN id (here it's 3) in the next steps.

Configure VLAN integration on host cluster nodes

Create namespace for network config

kubectl create namespace vcluster-networks

Create VLAN interface and bridge
```
apiVersion: bridgeoperator.k8s.cni.npwg.io/v1alpha1
kind: BridgeConfiguration
metadata:
  name: br-vlan-3
spec:
  nodeSelector:
    matchLabels:
      kubernetes.io/os: linux
  egressVlanInterfaces:
    - name: bond0
      protocol: 802.1q
      id: 3
```
The brigde operator creates a bridge with the name br-vlan-3 on every Node and attach the VLAN interface on top of the default interface. Egress from any (VLAN unaware) device attached to the bridge is tagged and thus part of the L2 domain of the virtual cluster. Likewise, the tag from VLAN ingress is stripped.

Create NetworkAttachmentDefinitions

We create separate NetworkAttachmentDefinitions to have control over IPAM:

The vCluster control plane Pods should get IPs from the same range
The load balancer gets no IP, since kube-vip assigns a static virtual IP
The VMs should just use DHCP

apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
  name: control-plane
  namespace: vcluster-networks
spec:
  config: |
    {
      "cniVersion": "1.0.0",
      "type": "bridge",
      "bridge": "br-vlan-3",
      "promiscMode": true,
      "ipam": {
        "type": "whereabouts",
        "range": "192.168.64.0/22",
        "range_start": "192.168.67.250",
        "range_end": "192.168.67.252"
      }
    }

---
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
  name: api-load-balancer
  namespace: vcluster-networks
spec:
  config: |
    {
      "cniVersion": "1.0.0",
      "type": "bridge",
      "bridge": "br-vlan-3",
      "promiscMode": true
    }

---
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
  name: virtual
  namespace: vcluster-networks
spec:
  config: |
    {
      "cniVersion": "1.0.0",
      "type": "bridge",
      "bridge": "br-vlan-3",
      "promiscMode": true
    }

Deploy vCluster control plane

Create vCluster

Use the following configuration and install vCluster in the vcluster-netris namespace:

vcluster.yaml
controlPlane:
  endpoint: 192.168.67.253:443
  statefulSet:
    pods:
      annotations:
        k8s.v1.cni.cncf.io/networks: "vcluster-networks/control-plane"
    highAvailability:
      replicas: 3
  backingStore:
    etcd:
      embedded:
        enabled: true
  coredns:
    enabled: true
privateNodes:
  enabled: true

Connect to the host Kubernetes cluster and run:

vcluster platform create vcluster -n vcluster-netris netris --values vcluster.yaml

The vCluster control plane Pods get an additional interface on the VLAN.
The endpoint is the IP of the load balancer.

Deploy load balancer in front of vCluster control plane Pods

The load balancer exposes the vCluster control plane Pods on a single IP on the subnet. A kube-vip sidecar assigns the IP on only one of the load balancer Pods at a time and provides active failover.

Update the target cluster address in the following manifest to <vcluster name>.<namespace>.svc.cluster.local:

apiVersion: v1
kind: ConfigMap
metadata:
  name: envoy-config
  namespace: vcluster-netris
data:
  envoy.yaml: |
    static_resources:
      listeners:
        - name: listener_https_443
          address:
            socket_address:
              address: 0.0.0.0
              port_value: 443
          filter_chains:
            - filters:
                - name: envoy.filters.network.tcp_proxy
                  typed_config:
                    "@type": type.googleapis.com/envoy.extensions.filters.network.tcp_proxy.v3.TcpProxy
                    stat_prefix: tcp_proxy
                    cluster: target_cluster
      clusters:
        - name: target_cluster
          type: STRICT_DNS
          connect_timeout: 5s
          load_assignment:
            cluster_name: target_cluster
            endpoints:
              - lb_endpoints:
                  - endpoint:
                      address:
                        socket_address:
                          address: netris.vcluster-netris.svc.cluster.local
                          port_value: 443

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: apiserver-lb
  namespace: vcluster-netris

---
# Minimal permissions for leader election (Leases in this namespace)
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: apiserver-lb-leader-election
  namespace: vcluster-netris
rules:
  - apiGroups: ["coordination.k8s.io"]
    resources: ["leases"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]

---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: apiserver-lb-leader-election
  namespace: vcluster-netris
subjects:
  - kind: ServiceAccount
    name: apiserver-lb
    namespace: vcluster-netris
roleRef:
  kind: Role
  name: apiserver-lb-leader-election
  apiGroup: rbac.authorization.k8s.io

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: apiserver-lb
  namespace: vcluster-netris
spec:
  replicas: 2
  selector:
    matchLabels:
      app: apiserver-lb
  template:
    metadata:
      labels:
        app: apiserver-lb
      annotations:
        k8s.v1.cni.cncf.io/networks: vcluster-networks/api-load-balancer
    spec:
      serviceAccountName: apiserver-lb
      containers:
        - name: envoy
          image: envoyproxy/envoy:v1.30.0
          args: ["-c", "/etc/envoy/envoy.yaml", "--log-level", "info"]
          env:
            - name: ENVOY_UID
              value: "0"
            - name: ENVOY_GID
              value: "0"
          ports:
            - name: https
              containerPort: 443
          volumeMounts:
            - name: envoy-config
              mountPath: /etc/envoy
              readOnly: true
        - name: kube-vip
          image: ghcr.io/kube-vip/kube-vip:v1.0.0
          args: ["manager"]
          env:
            - name: vip_arp
              value: "true"
            - name: port
              value: "443"
            - name: vip_nodename
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: vip_interface
              value: net1
            - name: vip_subnet
              value: "22"
            - name: cp_enable
              value: "true"
            - name: cp_namespace
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
            - name: vip_leaderelection
              value: "true"
            - name: vip_leasename
              value: apiserver-lb
            - name: vip_leaseduration
              value: "5"
            - name: vip_renewdeadline
              value: "3"
            - name: vip_retryperiod
              value: "1"
            - name: address
              value: "192.168.67.253"
          securityContext:
            capabilities:
              add: ["NET_ADMIN", "NET_RAW"]
              drop: ["ALL"]
      volumes:
        - name: envoy-config
          configMap:
            name: envoy-config
            items:
              - key: envoy.yaml
                path: envoy.yaml

Verify that the load balancer is working:

$ kubectl --context <host cluster context> -n vcluster-netris debug -it --image=nicolaka/netshoot netris-0 -- nc -w1 -z -v 192.168.67.253 443                                                                                                                                                                1s 04:55:36PM
Connection to 192.168.67.253 443 port [tcp/https] succeeded!

This shows that the load balancer (Pod) is a neighbor on the virtual cluster VLAN subnet.

The Pods may reside on the same host as the load balancer, in which case the traffic would remain on the bridge and never be tagged. To circumvent this, pick a different Pod to run the command from.

Join bare metal server

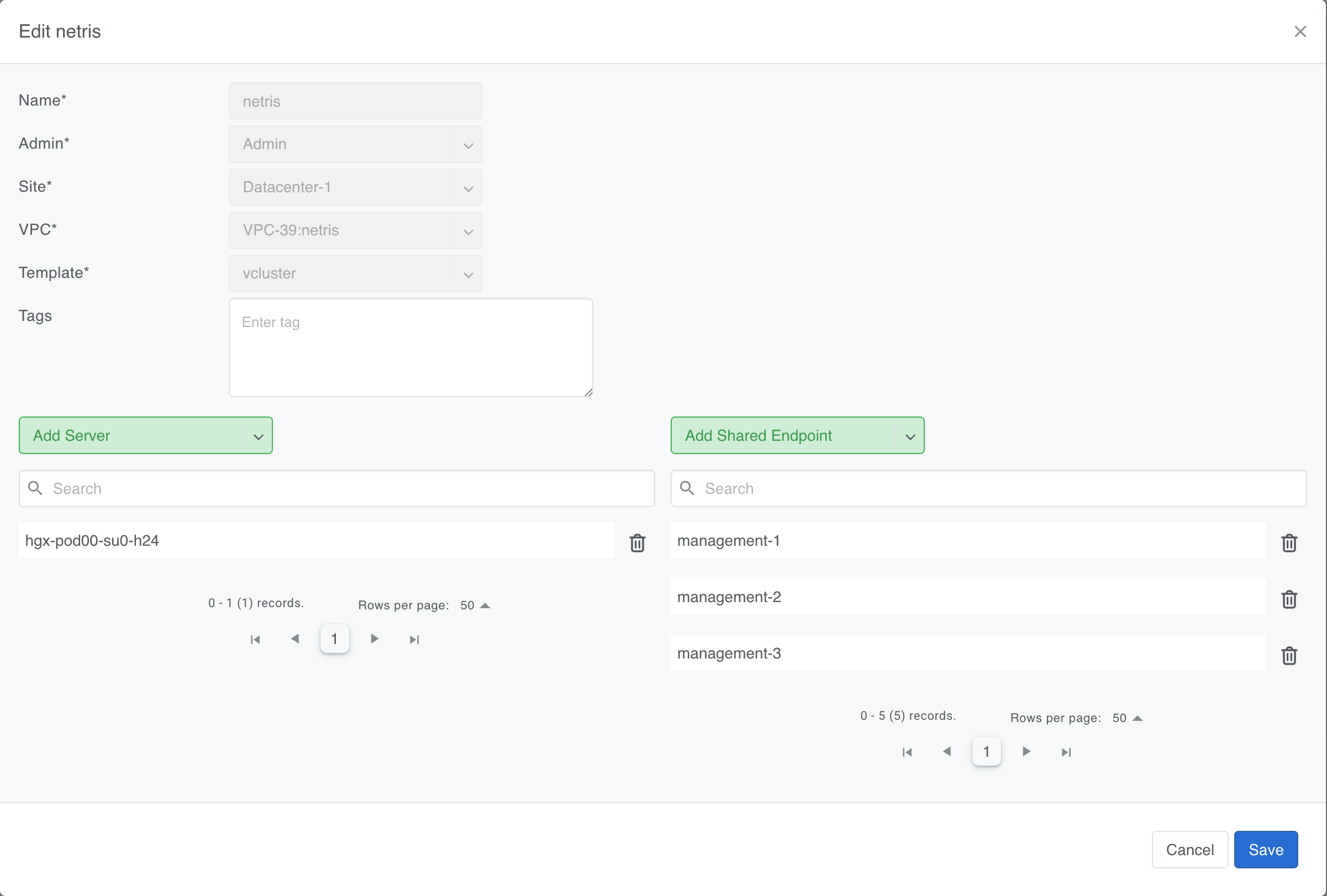

Add server to ServerCluster

Provision server with OS and configure the default interface (bond)

Verify:

$ ip -br a show bond0
bond0            UP             192.168.64.9/22 metric 10 fe80::6cb4:6fff:fedb:d0bb/64

Obtain join token from vCluster

Connect to the virtual cluster and run vcluster token create. The output should be something like this:
```
curl -sfLk "https://192.168.67.253:443/node/join?token=ooj3s3.6glbz3pq4e15s25g" | sh -
```
Run join command on server

This downloads the necessary Kubernetes binaries and container runtime, configures Kubelet and joins the virtual cluster as a new node.

You may have to configure NAT so the server can reach the internet or any package mirrors. This depends on the operating system of your choice.

Verify that the server joined the virtual cluster

$ kubectl get no
NAME                STATUS   ROLES    AGE   VERSION
hgx-pod00-su0-h24   Ready    <none>   68s   v1.32.1

Join VM running in host cluster infrastructure

Obtain join token from the virtual cluster

$ vcluster token create
curl -sfLk "https://192.168.67.253:443/node/join?token=tvkoek.om6n9cjltoeh9g5y" | sh -

Create a VM in the host cluster that automatically joins the virtual cluster

We pass the join command as a cloud-init runCmd, so it runs after the first boot.

With the following manifest, KubeVirt creates a VM running in the host cluster:

apiVersion: kubevirt.io/v1
kind: VirtualMachine
metadata:
  name: netris-vm
  namespace: vcluster-netris
spec:
  running: true
  dataVolumeTemplates:
    - metadata:
        name: ubuntu
      spec:
        pvc:
          accessModes:
            - ReadWriteOnce
          resources:
            requests:
              storage: 20Gi
        source:
          http:
            url: "https://cloud-images.ubuntu.com/noble/current/noble-server-cloudimg-amd64.img"
  template:
    metadata:
      labels:
        kubevirt.io/domain: vcluster-netris
    spec:
      domain:
        cpu:
          cores: 2
        devices:
          disks:
            - name: rootdisk
              disk:
                bus: virtio
            - name: cloudinitdisk
              disk:
                bus: virtio
          interfaces:
            - name: vlan
              bridge: {}
        resources:
          requests:
            memory: 2Gi
            cpu: "2000m"
      networks:
        - name: vlan
          multus:
            networkName: vcluster-networks/virtual
      volumes:
        - name: rootdisk
          dataVolume:
            name: ubuntu
        - name: cloudinitdisk
          cloudInitNoCloud:
            userData: |
              #cloud-config
              hostname: netris-vm
              manage_etc_hosts: true
              users:
                - name: ubuntu
                  gecos: Ubuntu
                  sudo: ALL=(ALL) NOPASSWD:ALL
                  shell: /bin/bash
                  lock_passwd: false
              ssh_pwauth: true
              chpasswd:
                list: |
                  ubuntu:ubuntu
                expire: false
              runcmd:
                - curl -sfLk "https://192.168.67.253:443/node/join?token=tvkoek.om6n9cjltoeh9g5y" | sh -
            networkData: |
              version: 2
              ethernets:
                enp1s0:
                  dhcp4: true

Multus creates an additional interface attached to the bridge, which becomes the default interface in the VM.

After the OS is initialized, the join command is executed, which installs Kubernetes and joins the virtual cluster as a new node.

After a short time, the VM shows up in the virtual cluster:

$ kubectl get nodes -w
NAME                STATUS   ROLES    AGE     VERSION
hgx-pod00-su0-h24   Ready    <none>   25m     v1.32.1
netris-vm           NotReady <none>   0s      v1.32.1

Netris​

Prerequisites​

Tools used​

Prepare host cluster​

Configure switch fabric​

Install Kubernetes​

Install compatible CNI plugin​

Install tooling​

Multus​

Bridge operator​

Whereabouts IPAM plugin​

KubeVirt​

Start vCluster platform​

Deploy vCluster​

Configure switch fabric for the virtual cluster​

Configure VLAN integration on host cluster nodes​

Deploy vCluster control plane​

Join bare metal server​

Join VM running in host cluster infrastructure​
